KRYPTONITE SS SERIES CENTERLINK TIE ROD PACKAGE C-SERIES 1988-1998

Fits:

1988-1998 Chevy C1500

1988-1998 Chevy C2500

1988-1998 Chevy C3500

1988-1998 GMC C1500

1988-1998 GMC C1500

1988-1998 GMC C1500

Important Fitment Details:

This kit is designed for the ***C-Series*** Trucks and SUV's. (2WD trucks only)

Features:

• Size: 1- 5/8 inch Hexagonal
• Material: 1144 Stress Proof Carbon Steel.
• Finish: Zinc

Description:

C-Series trucks can now indulge in this insanely strong centerlink has been engineered to maintain all factory alignment specs and steering geometry. This steering system is modeled after the Centerlink on the H1 Military Hummer, this is a much stronger design when compared to what's offered from factory on all non Hummer GM Trucks. Can be used with GM or aftermarket Idler / Pitman arms.

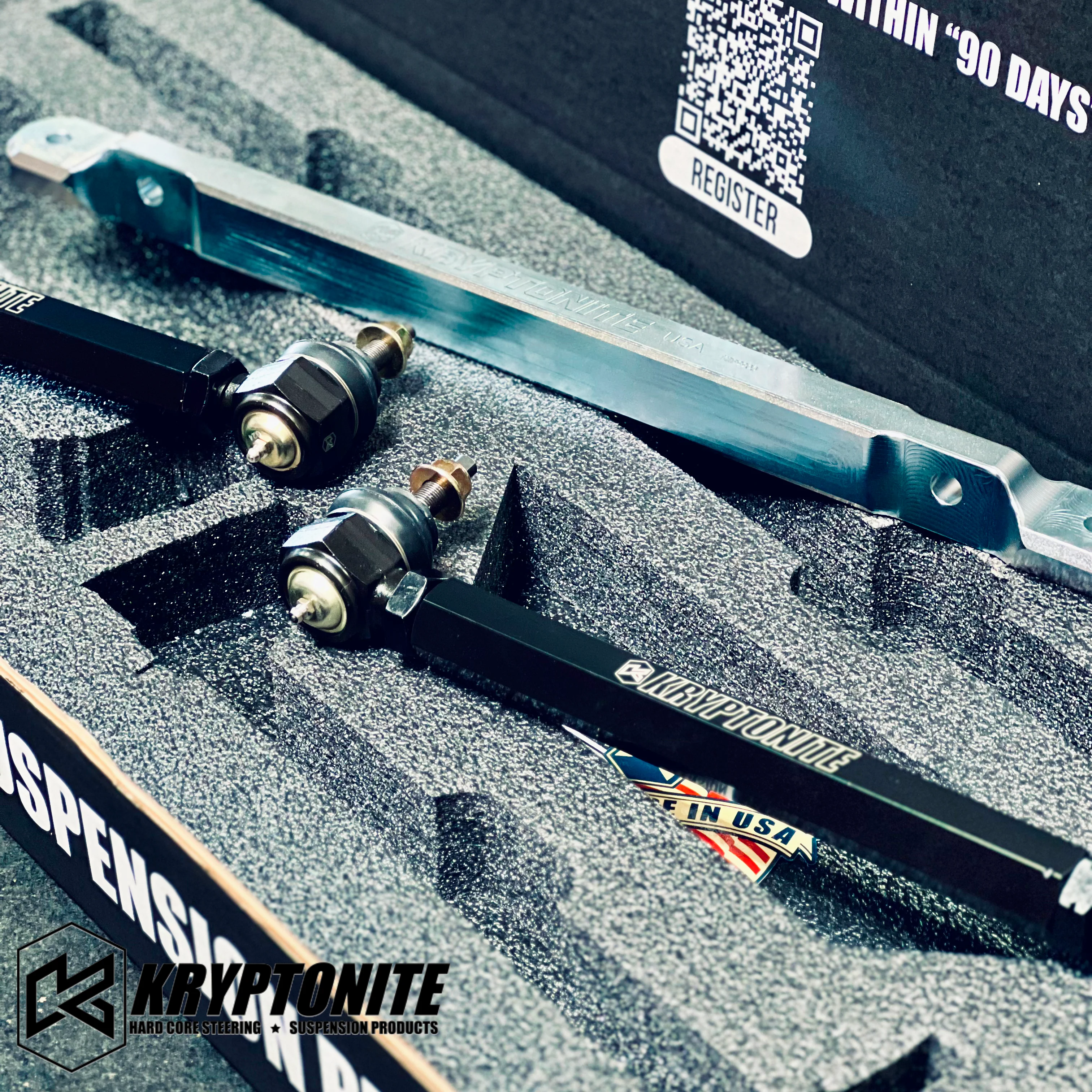

Includes:

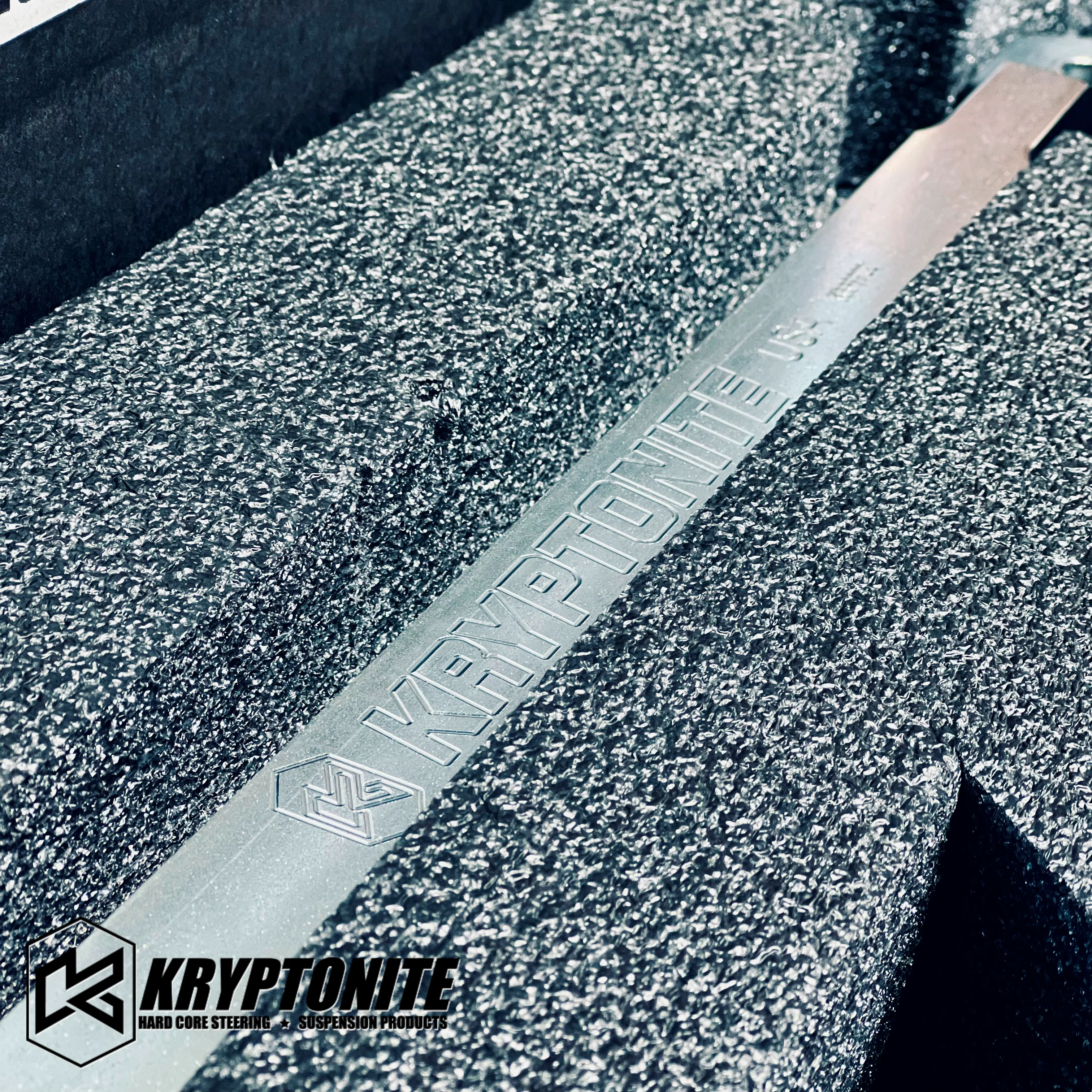

• 1 x Kryptonite Series Solid Centerlink

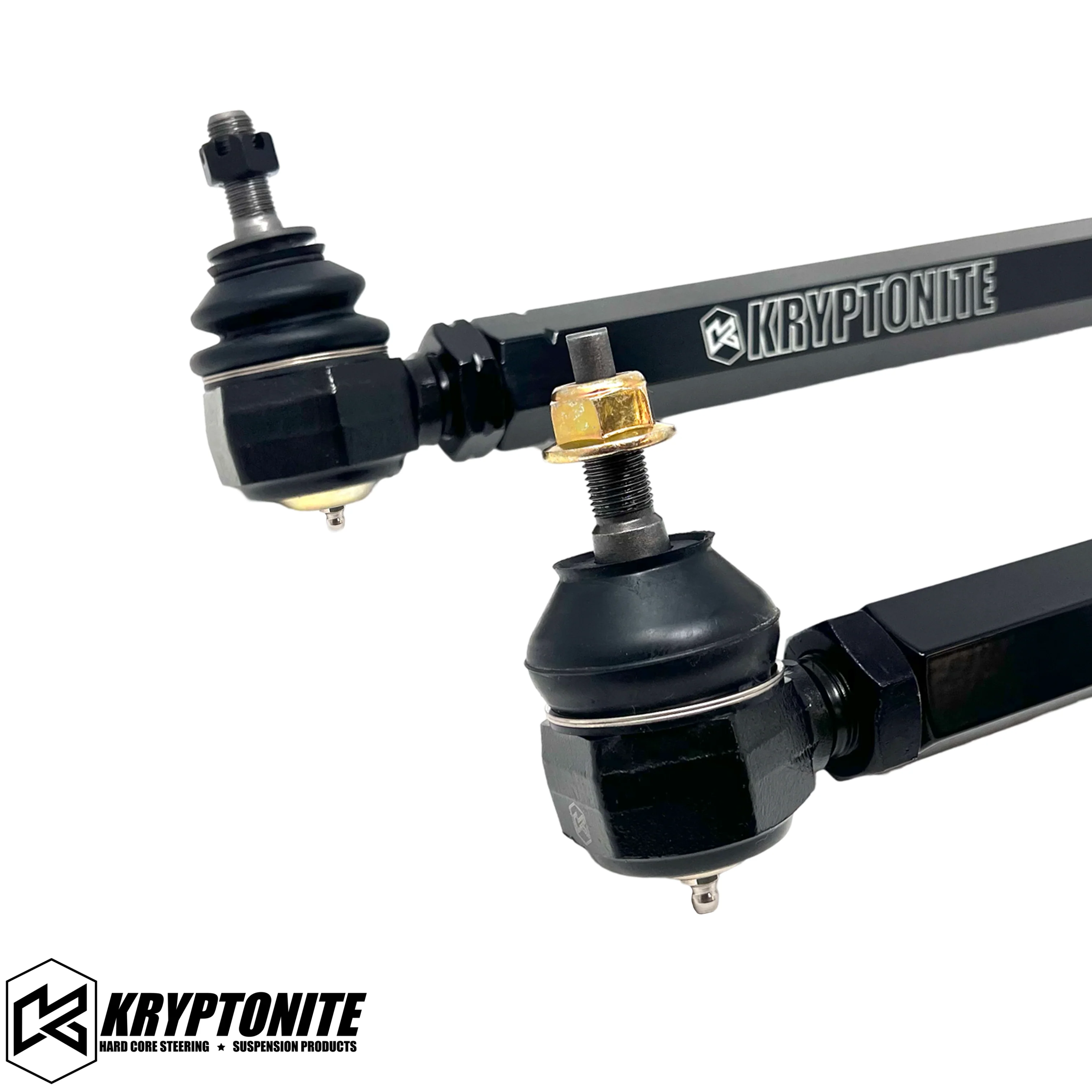

• 2 x Kryptonite Series Tie Rods

Materials Breakdown:

	1144 Stress Proof Carbon steel	4140-4130 chromoly steel
Tensile Strength	115,000 psi (Min.)	85,000–110,000 psi
Yield Strength	100,000 psi (Min.)	70,000–85,000 psi



Instructions:

CLICK HERE FOR CENTERLINK INSTALLATION INSTRUCTION DOWNLOAD

Warranty:

(Kryptonite No Fine Print Lifetime Warranty)
Kryptonite Steering & Suspension components are warrantied for life to their original purchaser. This warranty covers manufacturer defects, premature wear, or breakage. Race it, jump it, off‑road it, wreck it, lift it—we don’t care. If you can break it, we’ll replace it.

Your Kryptonite products must be purchased through an Authorized Dealer, and Warranty Registration completed within 90 days of purchase. Complete warranty details can be found [here].
